Hydraulic Winch Machine

Hydraulic Winch Machine

Hydraulic Winch Machine

High-Performance Solutions for Pulling & Lifting Applications

Hydraulic Force Enterprises offers advanced Hydraulic Winch Machines designed for heavy-duty pulling, lifting, and stringing operations across various industries. These machines are engineered to deliver high efficiency, durability, and reliable performance in demanding field conditions.

Our winch machines are widely used in transmission line erection, construction projects, and power transmission industries. Built with robust engineering and user-friendly features, they ensure smooth operation, better control, and enhanced safety during critical applications.

With decades of experience since 1996, Hydraulic Force Enterprises has established itself as a leading manufacturer of high-quality winch machines in India. Our products are designed to combine strength, performance, and ease of use, making them suitable for both large-scale infrastructure projects and routine industrial operations.

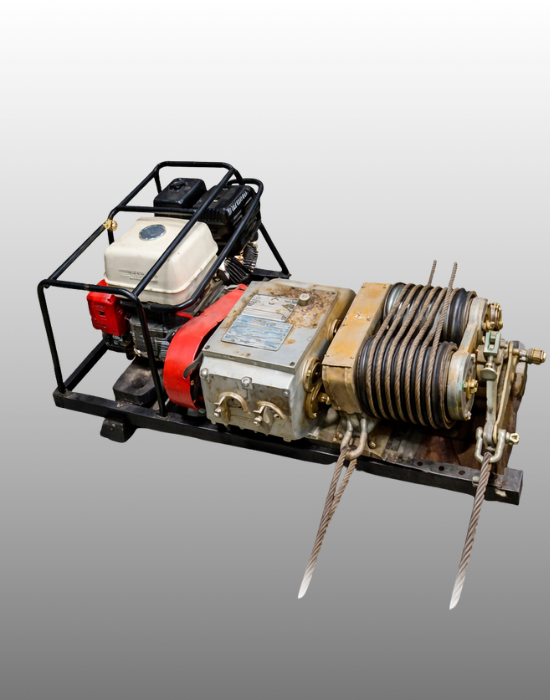

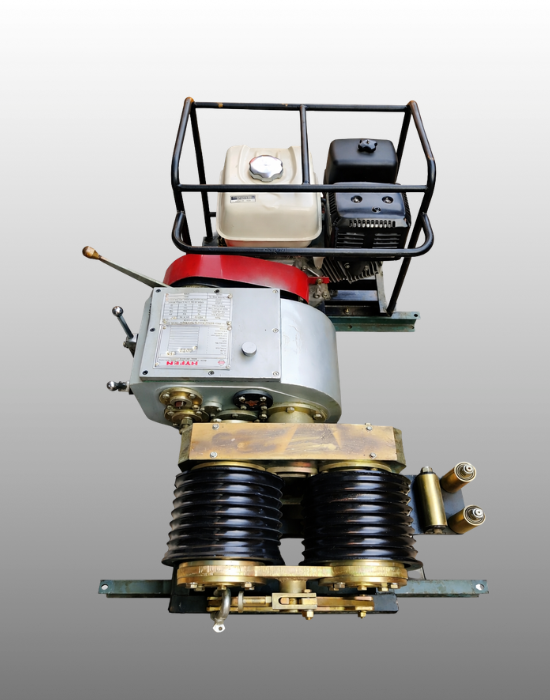

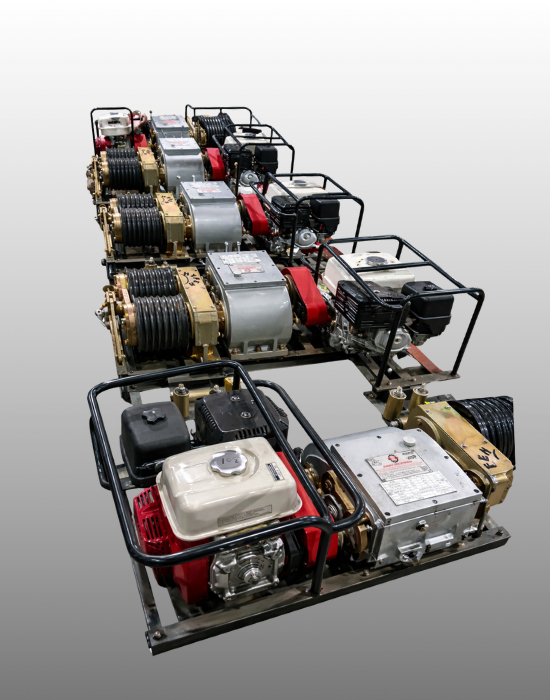

Double Capstan Power Winch Machine (5 Ton)

Heavy-Duty Winch for Transmission Line Stringing

Hydraulic Force Enterprises offers the Double Capstan Power Winch Machine (5 Ton), specially designed for accurate pulling operations in transmission line projects. This machine is ideal for tower erection and stringing applications where controlled tension and high pulling capacity are required.

Key Specifications

Capacity: 5 Ton
Application: Tower erection and transmission line stringing operations
Body: Fabricated from high-quality mild steel
Gears: Made from alloy steel, properly tempered and hardened
Engine: Honda GX-390 gasoline engine
Power: 8.2 KW (11 HP)
RPM: 3600

Features

  • Available in Double Capstan and Single Capstan variants
  • Equipped with clutch and braking system for better control
  • Multiple speed options: Slow Forward, Fast Forward, and Reverse

Technical Details

  • Approximate Weight: 280 Kg
  • Equipped with two pulleys (outer diameter 200 mm)
  • Six grooves design suitable for 12 mm wire rope

Applications

  • Transmission line stringing
  • Tower erection projects
  • Heavy-duty pulling operations

Why Choose This Winch Machine?

  • High load capacity with stable performance
  • Reduces rope slippage and improves safety
  • Reliable engine-driven operation for field use

Power Winch Machine for OPGW

Reliable Solution for Accurate OPGW Line Pulling

Hydraulic Force Enterprises offers a high-performance Power Winch Machine for OPGW, specially designed for accurate and controlled pulling of OPGW (Optical Ground Wire) lines in transmission projects. This machine ensures smooth operation, precise tension control, and reliable performance in demanding site conditions.

Key Specifications

Application: Suitable for accurate pulling of OPGW lines
Body: Fabricated using high-quality mild steel
Gears: Alloy steel, properly tempered and hardened for durability
Engine: Honda GX-390 gasoline engine
Power Output: 8.2 KW (11 HP)
RPM: 3600

Features

  • Available in Single Capstan configuration
  • Equipped with clutch and braking system for better operational control
  • Multiple speed options: Slow Forward, Fast Forward, and Reverse

Technical Details

  • Approximate Weight: 250 Kg
  • Equipped with one pulley (outer diameter 400 mm)
  • Designed for efficient rope handling and reduced wear

Applications

  • OPGW cable installation
  • Power transmission line projects
  • Tower erection and stringing work

Why Choose This Machine?

  • Ensures accurate and controlled cable pulling
  • Reduces operational risk and improves efficiency
  • Reliable performance in tough field conditions

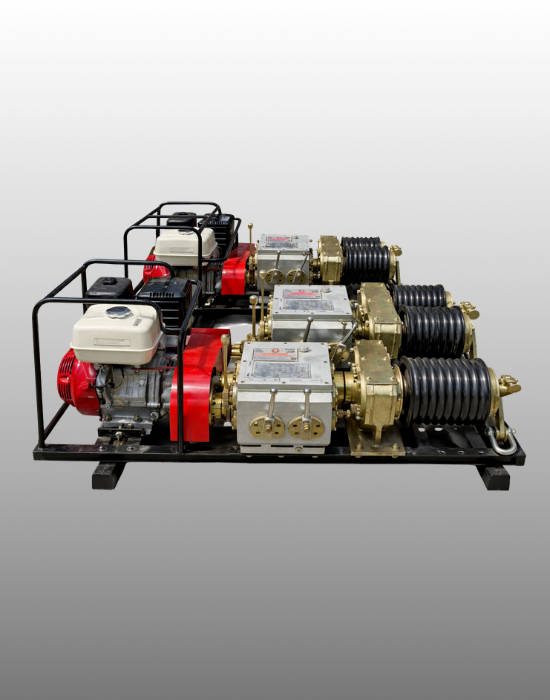

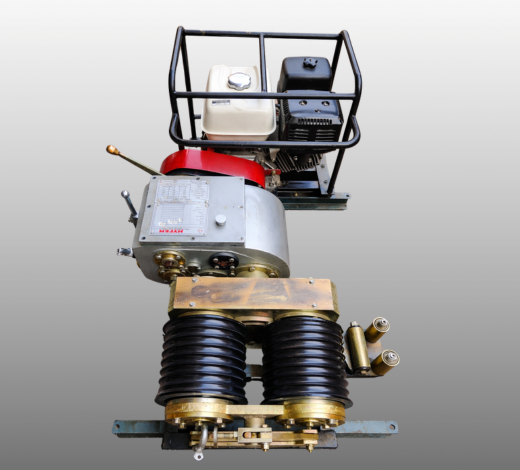

Double Capstan Power Winch Machine (5 MT)

High-Capacity Winch for Controlled Transmission Line Operations

Hydraulic Force Enterprises offers the Double Capstan Power Winch Machine (5 MT), designed for applications where higher capacity and precise tension control are required. This machine is ideal for large-scale transmission line projects, ensuring smooth and efficient pulling operations.

Key Features

  • Engine Operated (Petrol/Diesel Option)
  • Double Capstan Design
  • Heavy-Duty Construction

Applications

  • Power transmission line stringing
  • Tower erection projects
  • Heavy-duty pulling and lifting operations

Why Choose This Machine?

  • Provides better control during pulling operations
  • Reduces rope slippage and operational risks
  • Suitable for large-scale and high-load projects

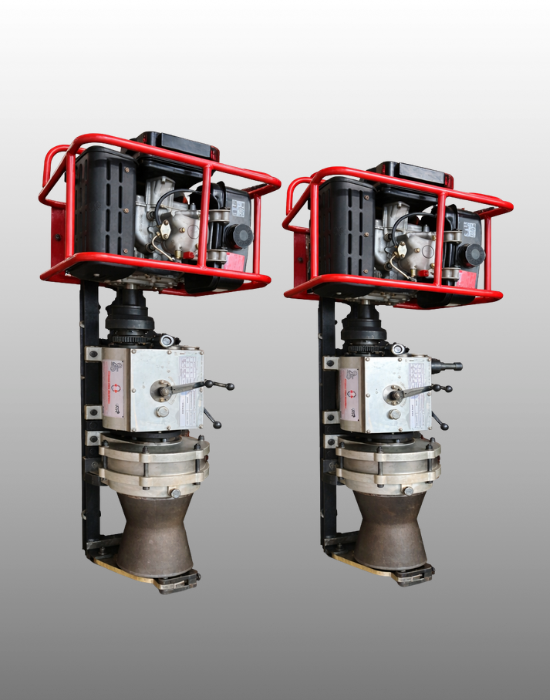

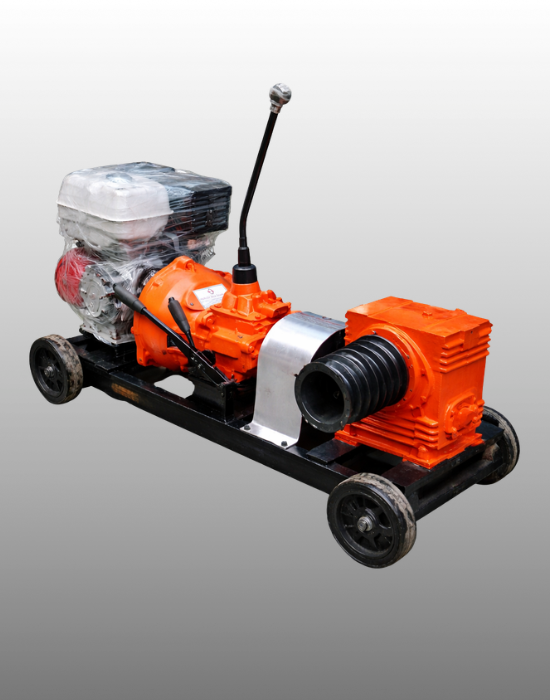

Single Capstan Power Winch Machine (3 MT / 5 MT)

Compact & Efficient Winch for Controlled Pulling Operations

Hydraulic Force Enterprises offers the Single Capstan Power Winch Machine, designed for high efficiency, simplicity, and reliable performance in demanding environments. This machine is ideal for applications where space is limited but powerful pulling performance is required.

Key Features

  • Engine Driven (Petrol / Diesel Options)
  • Single Capstan Design
  • Heavy-Duty Construction

Applications

  • Power transmission line stringing
  • OPGW cable installation
  • Cable laying operations

Why Choose This Machine?

  • Compact yet powerful performance
  • Easy handling and operation
  • Suitable for both small and medium-scale projects

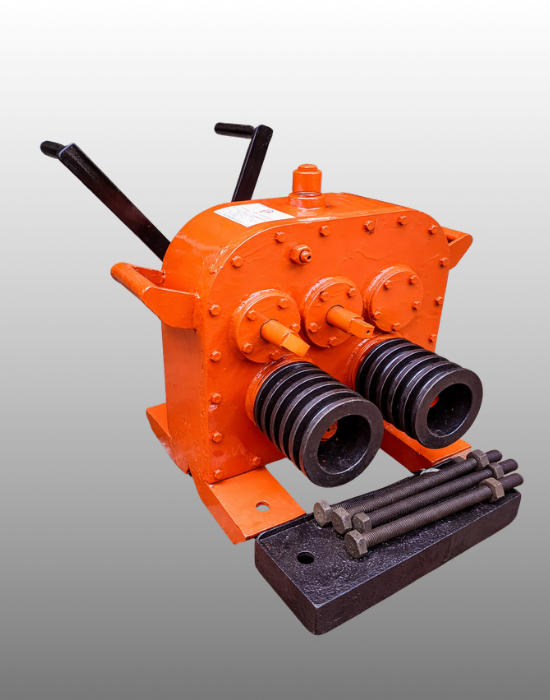

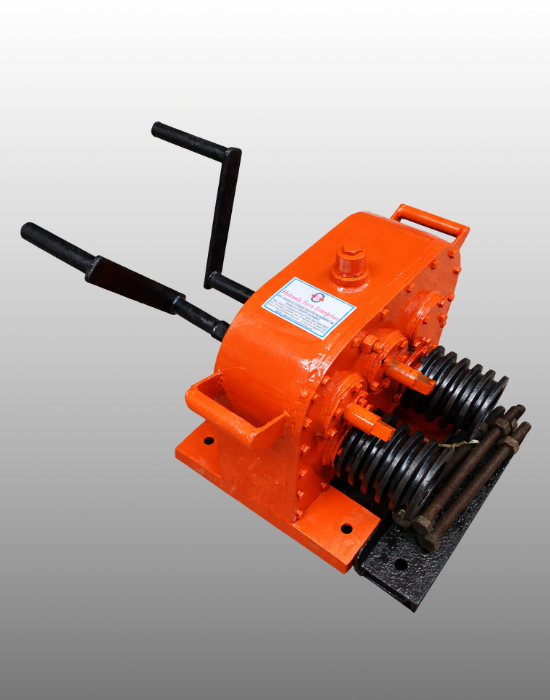

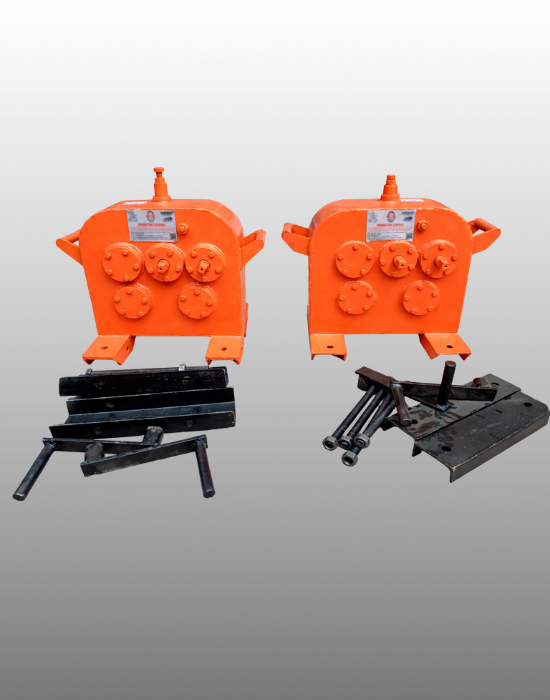

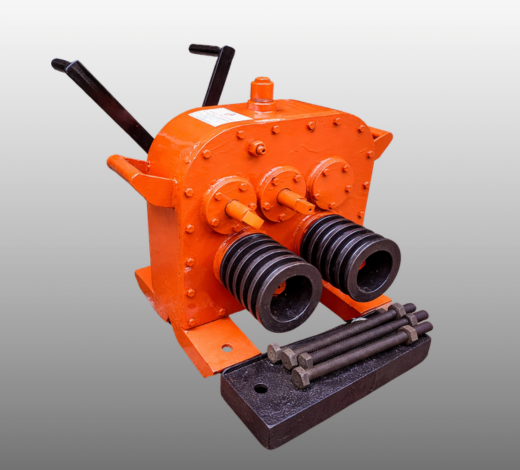

Sagging Winch Machine (Mechanical, Hand Operated – 10 Ton)

Reliable Manual Solution for Conductor Tensioning

Hydraulic Force Enterprises offers the Sagging Winch Machine (Mechanical, Hand Operated – 10 Ton), designed for accurate tensioning of conductors during transmission line construction. This machine is ideal for applications where controlled sagging and manual operation are required.

Key Specifications

Capacity: 10 Ton
Application: Conductor tensioning in transmission line construction
Body: Fabricated from high-quality mild steel
Dimensions: 430 × 430 × 430 mm (with legs)
Gears: 7 helical type alloy steel gears, tempered and hardened
Bearing: High-quality bearing provided
Shaft Material: EN-8 steel

Features

  • Hand Operated with Dual Handles
  • Bi-Directional Operation
  • Ratchet System

Applications

  • Transmission line sagging operations
  • Conductor tension control
  • Tower erection work

Why Choose This Machine?

  • Accurate manual tension control
  • Strong and durable construction
  • Safe operation with braking and ratchet system
