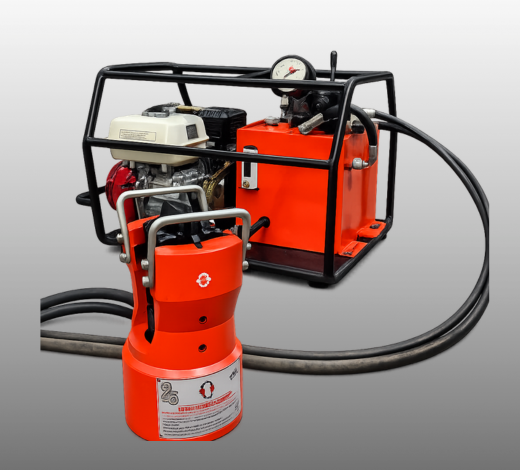

Hydraulic Compressor Machine

Hydraulic Compressor Machine

Hydraulic Compressor Machine

High-Performance Solution for Conductor Jointing & Crimping

Hydraulic Force Enterprises offers advanced Hydraulic Compressor Machines designed for efficient and reliable conductor jointing in power transmission and infrastructure projects.

These machines are widely used for crimping ACSR, AAAC, ACCC conductors and earth wires, ensuring strong and secure electrical connections.

Built with precision engineering and high-quality materials, our hydraulic compressor machines deliver consistent performance even in demanding field conditions.

  • Motorized units for heavy-duty operations
  • Hand-operated models for portable use
  • Designed for diverse project requirements

Sub Products

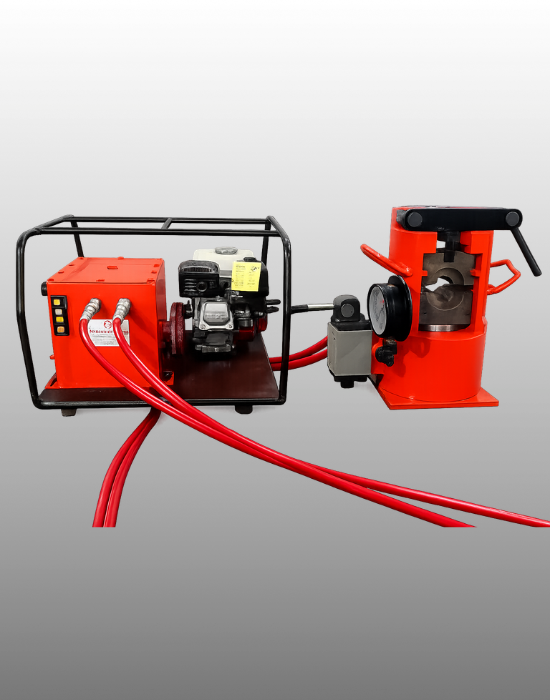

Motorized Hydraulic Compressor

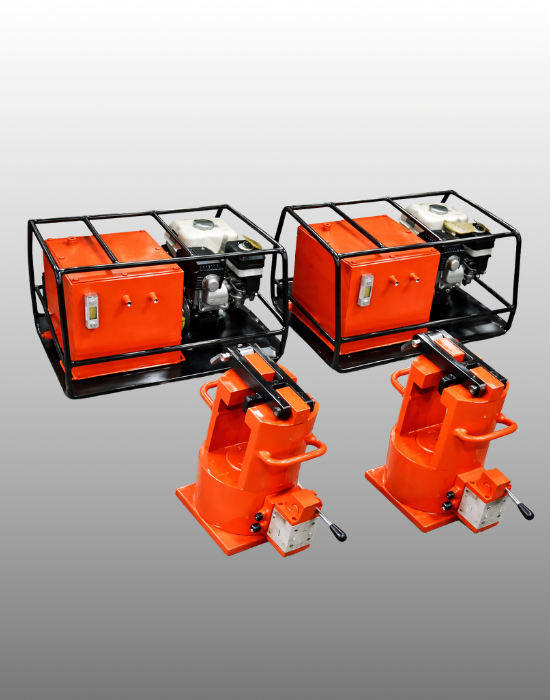

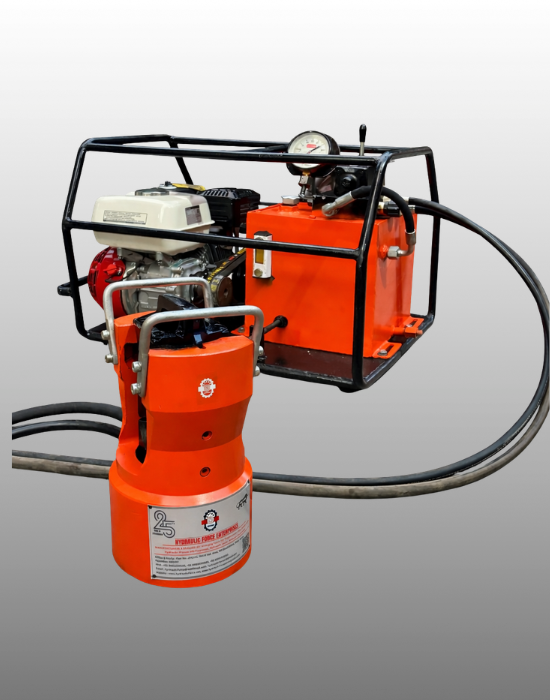

Hydraulic Compressor Machine (Motorized)

Hydraulic Force Enterprises offers high-performance motorized hydraulic compressor machines designed for efficient conductor jointing in high-voltage transmission lines up to 800 KV.

These machines are engine-operated and suitable for ACSR, AAAC, ACCC conductors and earth wire applications.

The system is supplied with a hydraulic pumping unit, petrol engine, and pressure gauge connected with a high-pressure rubber hose pipe, ensuring reliable and consistent performance on-site.

EN-8 material construction with precision machining
Simple mechanical locking system
RAM travel: 22–25 mm
GX-200 OHV gasoline engine
Power: 4.1 KW (5.5 HP)
Flow rate: 2.6 Ltr/min
Double-acting cylinder
Working pressure: 10,000 PSI
Oil tank: 20 liters
High-pressure hose (10,000 PSI)

Available Capacities

35 Ton 100 Ton 125 Ton 150 Ton 200 Ton

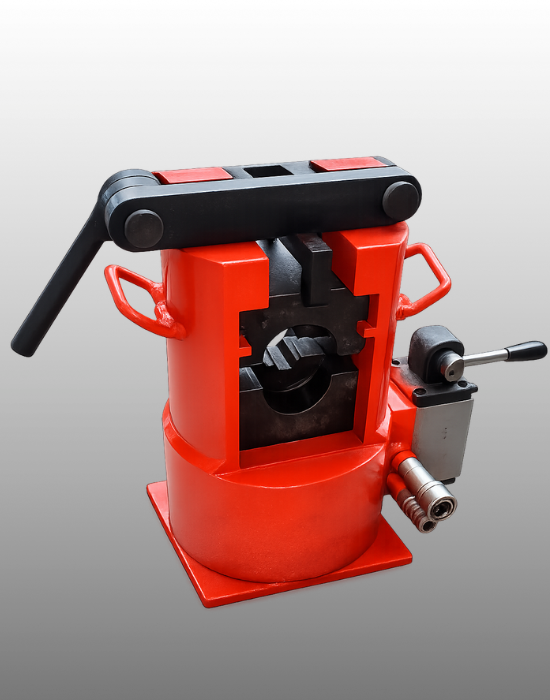

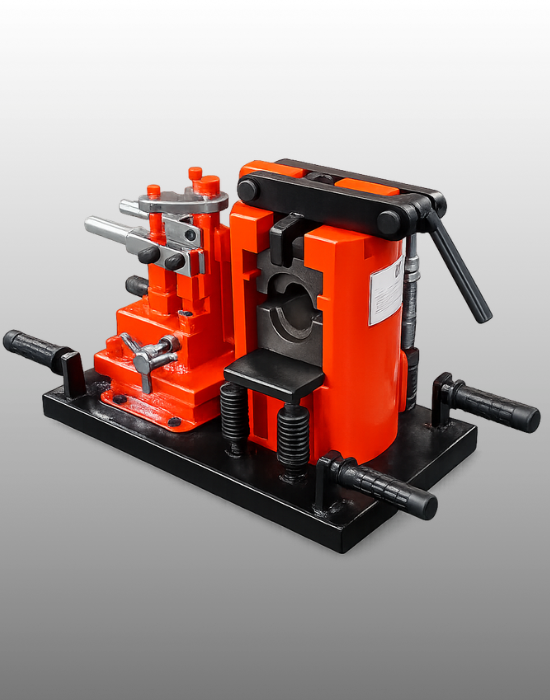

Hydraulic Compressor Machine (Hand Operated)

Hydraulic Force Enterprises also manufactures hand-operated hydraulic compressor machines, ideal for portable and on-site applications.

These machines are suitable for jointing ACSR, AAAC, ACCC conductors and earth wire for transmission lines up to 800 KV.

Supplied with a hand-operated hydraulic pumping unit and pressure gauge, these machines offer reliable performance without the need for external power.

Portable & easy to carry
Solid EN-8 mono block construction
Mechanical locking crimping head
EN-8 steel RAM with precision finishing
RAM travel: 22–25 mm
Two-stage hand pumping system
High lift & low pressure mode
Low lift & high pressure mode
Working pressure: 1000 Bar
Release valve for control
Oil tank: 2 liters
Extra PU seal set included

Available Capacities

35 Ton 100 Ton 150 Ton

Compression Dies for ACSR / AAAC / ACCC Conductor & Earth Wire

Hydraulic Force Enterprises provides high-quality compression dies suitable for all types of conductors and earth wires used in hydraulic compressor machines (both engine-operated and hand-operated).

These dies are manufactured using high carbon steel, ensuring strength, durability, and long service life.

Suitable for ACSR, AAAC, ACCC conductors
Compatible with hydraulic compressor machines
Made from high carbon steel
Hardened & tempered for durability
Designed to relieve internal stress
Prevents breakage during use
Hardness: 45–50 HRC (Rockwell)
Portable Hydraulic Compressor

Hydraulic Compressor Machine (35 Ton – Portable)

Hydraulic Force Enterprises offers a 35 Ton Hydraulic Compressor Machine designed for portable jointing applications on transmission towers.

This machine is ideal for on-site operations where mobility, efficiency, and precision are required. It comes as a complete set with a hydraulic pumping unit and long rubber hose pipe.

Usage / Application

Tower Jointing Work Transmission Line Installation ACSR / AAAC / ACCC Jointing
Capacity: 35 Ton
Crimping Range: Up to 40 Ton
Portable tool head design
Warranty: 1 Year
Hose Length: 20 meters
2-in-1 hydraulic system
RAM Diameter: 90 mm
Body Diameter: 115 mm
Length: 250 mm
RAM Travel: 30 mm
Includes 3 die sets

Key Features

Portable Design Dual Plunger System High Efficiency Durable Build Ready-to-Use Set Heavy-Duty Use
